| Allmänt |

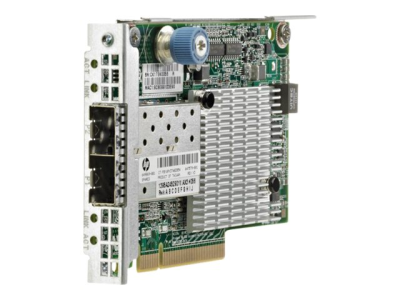

| Typ av enhet | Nätverksadapter |
| Formfaktor | Instickskort |
| Gränssnittstyp (buss) | PCI Express 2.0 x8 |
| Version av PCI-specifikation | PCIe 2.0 |
| Nätverk |
| Portar | 10 Gigabit SFP+ x 2 |
| Anslutningsteknik | Kabelansluten |
| Datalänkprotokoll | 10 Gigabit Ethernet |
| Dataöverföringshastighet | 10 Gbps |
| Statusindikatorer | Portstatus, länk/akvititet |
| Funktioner | Auto-negotiation, Jumbo Frames-support, PXE-support, LSO, RSS, TSO |
| Standarder som följs | IEEE 802.3, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 802.2x |
| Processor / Minne |
| Processor | 1 x Broadcom BCM57810S |
| RAM | 256 MB |
| Expansion/Anslutning |
| Gränssnitt | 2 x 10Gb Ethernet - SFP+ |
| Diverse |
| Standarder som följs | FCC klass A-certifierad, UL, VCCI klass A ITE, EN55024, EN55022 klass A, ICES-003 klass A, WEEE, RoHS, BSMI Class A, EN 61000-3-2:2006, EN 61000-3-3:2008 |
| Programvara / Systemkrav |
| Operativsystem erfordras | SuSE Linux Enterprise Server 11, SuSE Linux Enterprise Server 10, Microsoft Windows Server 2008, Microsoft Windows HPC Server 2008, Oracle Solaris 10, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 5.7, VMware ESXi 5.0 update 1, VMware ESX 4.1 update 2 |
| Tillverkarens garanti |
| Service och support | Begränsad garanti - 1 år |
| Miljöparametrar |
| Min temperatur vid drift | 0 °C |
| Max temperatur vid drift | 55 °C |
| Luftfuktighet vid drift | 5 - 95 % (icke-kondenserande) |
| Kompatibilitetsinformation |
| Designat för | HPE Apollo 4200 Gen9 for Google
HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10
HPE ProLiant DL120 Gen10, DL180 Gen10, DL180 Gen10 Entry, DL180 Gen10 SMB, DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL20 Gen9 Solution, DL325 Gen10 Base, DL325 Gen10 Solution, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL380 Gen10 48TB Server for Cohesity DataPlatform, DL380 Gen10 96TB Server for Cohesity DataPlatform, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice, DL388p Gen8 Base, DL560 Gen10 for SAP HANA Compute Block, DL580 Gen10, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen10 Performance, XL170r Gen10, XL170r Gen10 24TB Server for Cohesity DataPlatform, XL170r Gen10 36TB Add-on Server for Cohesity DataPlatform, XL170r Gen10 Server for BlueData EPIC, XL190r Gen10, XL190r Gen10 for HPE Ezmeral Container Platform, XL270d Gen10, XL270d Gen10 for HPE Ezmeral Container Platform, XL450 Gen10, XL450 Gen10 200TB Server for Cohesity DataPlatform, XL450 Gen10 400TB Server for Cohesity DataPlatform, XL450 Gen10 700TB Server for Cohesity DataPlatform
HPE SimpliVity 325 Gen10 Node, 380 Gen10 G Node, 380 Gen10 H Node, 380 Gen10 Network Choice G Node, 380 Gen10 Network Choice H Node, 380 Gen10 Node |
|
